Product Description
FMA120 – internal high gain GNSS and GSM antennas with battery
Small and professional tracker with internal high gain GNSS and GSM antennas, internal backup battery

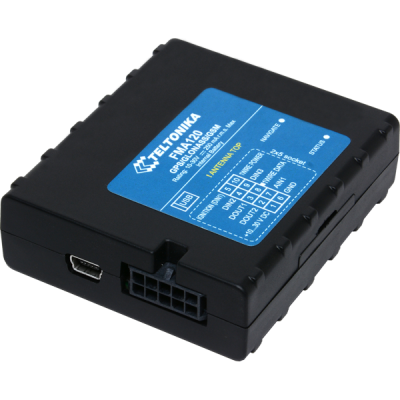

Teltonika FMA 120
Product features
-
TECHNOLOGY
- GNSS
- GPRS
- SMS
-
HARDWARE
- Internal GSM antenna
- Internal GNSS antenna
- DIN – digital input – 3
- AIN – analog input – 1
- DOUT – 2
- 1-Wire® – 1
- Accelerometer
- Battery – 170mAh Li-ion 3,7V
- IP41
- 1MB memory
- 10 – 30V
- Overvoltage protection
- 1x SIM Card
- USB 2.0 Interface
-
FIRMWARE
- LV-CAN support
- ALL-CAN support
- Ignition detection
- Geo-fence
- Sleep/Deep sleep
- Overspeeding detection
- FOTA
- Remote Log
- GPRS commands
- RFID 1-Wire®
- iButton 1-Wire®
- Temp. 1-Wire®
- Immobilizer
- Green driving
- Fuel monitoring LLS
- Jamming detection
- NTP time synch.
- SMS event
- Odometer
- Trip detection
- Integrated scenarios
- Remote configuration over SMS
- Offline tracking
- Auto Geofencing
Technical details
GSM
- Quad-band 900/1800 MHz; 850/1900 MHz
- GPRS Multi-Slot Class 12(up to 240 kbps)
- GPRS Mobile Station Class B
- SMS (text/data)
GNSS
- Tracking: 33/ 99 acquisition channels
- -165 dBM sensitivity
- Hot start <1s
- Warm Start < 25s
- Cold start < 35s
- NMEA-183 protocol
- GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
- Accuracy < 3m
INTERFACE
- 1 Digital Input Reserved for Ignition Status Monitoring
- 2 Digital Inputs
- 1 Analog Input (10V or 30V range)
- 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
- 1Wire® temperature sensor
- 1Wire® iButton
- Motion sensor
- Power supply (+10…+30) V DC
- Internal high gain GSM antenna
- Internal high gain GNSS antenna
- Integrated LiPo back-up battery
- Dimensions: L(65mm)xW(56,6mm)xH(18,9mm)
- 2 Status LEDs
- USB Port
