Product Description

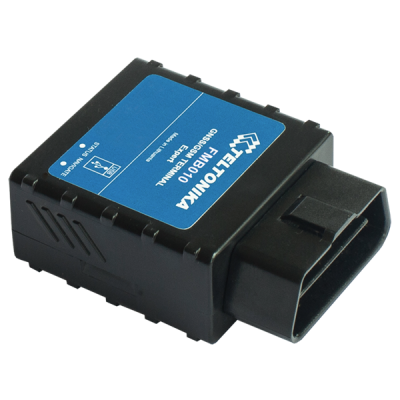

FMB010
An easy Plug and Track real-time tracking terminal with GNSS, GSM and Bluetooth connectivity
Teltonika FMB010
Product features
TECHNOLOGY
- GNSS
- GPRS
- SMS
- Bluetooth
HARDWARE
- 1x Micro-SIM card
- Internal GSM antenna
- Internal GNSS antenna
- OBD II connector
- DIN – digital input – 1
- Accelerometer
- Battery – 170mAh Li-ion 3,7V
- IP41
- 1MB memory
- Micro SD
- 10 – 16V
- USB 2.0 Interface
FIRMWARE
- NITZ time synch.
- Configuration over Bluetooth
- Bluetooth sensors support
- Ignition detection
- Geo-fence
- Sleep/Deep sleep
- Overspeeding detection
- FOTA
- Remote Log
- GPRS commands
- Green driving
- Jamming detection
- NTP time synch.
- SMS event
- Idling detection
- Crash detection
- Odometer
- Trip detection
- Towing detection
- Integrated scenarios
- Remote configuration over SMS
- Offline tracking
- Auto Geofencing
- Voice call
- Alarm button
Technical details
GSM:
- Quad-band 900/1800 MHz; 850/1900 MHz
- GPRS class 12 (up to 240 kbps) SMS (text/data)
- SMS (text/data)
- Micro-SIM format
Bluetooth:
- Bluetooth specification V3.0
- Bluetooth transceiver fully compliant with Bluetooth specification V3.0 for external peripherals:
- Voice calls over Bluetooth
- Configuration via Bluetooth
- Bluetooth sensors
GPS/GLONASS:
- Tracking: 33/ 99 acquisition channels
- -165 dBM sensitivity
- Hot start <1s
- Warm Start < 25s
- Cold start < 35s
- NMEA-183 protocol
- GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
- Accuracy < 3m
Interface:
- 1 Digital Input Reserved for Ignition Status Monitoring (depends on vehicle type)
- Accelerometer
- Power supply (+10…+16) V DC
- Integrated back-up battery
- Internal High Gain GSM antenna
- Internal High Gain GNSS antenna
- Dimensions: L(50,7mm)xW(49,6mm)xH(25mm)
- 2 Status LEDs
- Configuration and firmware upload (FOTA and via cable)
